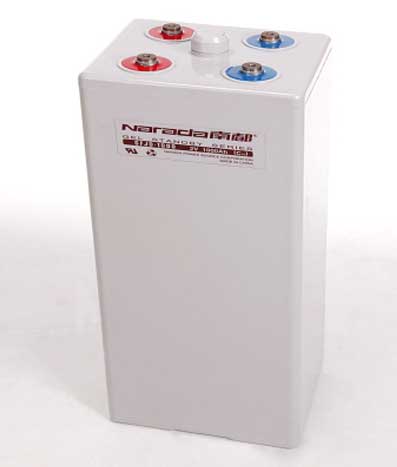

Ares range battery adopts traditional tubular gel technology, adopts patent gel electrolyte. The products are used as standby power for communication, power, military and broadcast and television system.
They possess precise ABS heat seal technology between container and lid and patented post seal structure. Provide better deep cycle performance versus AGM. The design float life is 18+ years.
|Rated Capacity||1000Ah (10hour rate) to 1.80V/cell @25OC(77OF)|
|Internal Resistance||Approx 0.238mΩ|
|Operating Temperature Range||Operation( maximum)： -40OC to 55OC (-40 OF to 131 OF)|
|Operation( recommended)： 15OC to 25OC (59 OF to 77 OF)|
|Storage ： -20OC to 40OC (-4 OF to 104 OF)|
|Charge Current||100A(Recommendation) 250A(Maxmum)|
|Equalize and Cycle Service||2.35V~2.40V/cell@25OC(77OF)|
|Self Discharge||The residual capacity is above 94% after 90 days storage(25OC/77OF)|

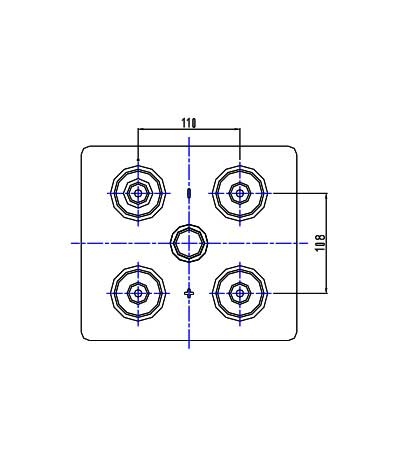

|Terminal||M8 Female Large Size Copper Post|
|Terminal Hardware Torque||15 ± 1.0Nm|
|Container Material||ABS (V0 optional)|
