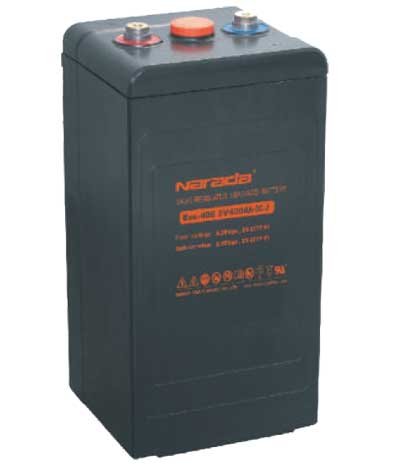

The Eos range of VRLA batteries offers outstanding performance including a 15+ year design life and a cycle life in excess of 1200 cycles to 80% DOD. Built to the highest standards and compliant with the latest IEC60896-21/22 standard this range also offers 100% capacity out-of-the-box and is capable of handling deep discharges for complete peace of mind.
The use of flexible connectors and several optional racking systems allows for multiple installation possibilities. This robust design uses the latest AGM technology to create a range that is suitable for many applications including both fixed and mobile telecoms, UPS, utilities and solar.
Battery Model | Eos-400 | ||||
---|---|---|---|---|---|
Nominal Voltage | 2V | ||||
Capacity (25℃) |
|
||||
|
|||||
Dimensions |
|
||||
|
|||||
Approx. Weight | 24.5kg | ||||
Internal Resistance | Approx 0.35mΩ | ||||
Max Charge Current Allowed | 100A | ||||
Charge Voltage (25℃) |
|
||||
|
|||||
Temperature Ranges | Operation(maximum): -40℃ to 55℃ (-40°F to 131°F) | ||||
Operation(recommended): 15℃ to 25℃ ( 59°F to 77°F) | |||||
Storage : -20℃ to 40℃ (-4°F to 104°F) | |||||
Terminal | M8 Female | ||||
Terminal Hardware Torque | 15 ± 1.0Nm | ||||
Container Material | ABS (V0 optional) |
